Flame detection

Here we present our range of flame detectors (quadruple IR; UV+IR). For any additional information, don’t hesitate to contact us.

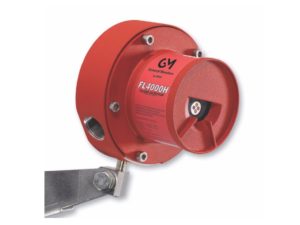

Quadruple IR Flame detector FL4000H model

  • Four temperature offset I.R. sensors, spectrum from 2 to 5 microns
  • Maximum sensitivity 70 metres for a n-heptane fire
  • Visibility of 120° at 33 metres
  • Two LEDS to control the correct operating and the level of the alarms
  • ATEX
  • SIL 3

UV/IR Flame detector FL500 model

  • A temperature offset IR sensor, working in the spectrum of 4.35 microns
  • Visibility of 130°
  • Maximum sensitivity 27 metres for a n-heptane fire of 0.092 m²
  • Three LEDS to control the correct operating and the level of the alarms
  • ATEX





UV/IR Flame detector FL3100H model



  • A temperature offset IR sensor, working in the spectrum of 2.7 – 3.2 microns
  • Visibility of 120°
  • Maximum sensitivity 15.2 metres for a fuel fire of 0.092 m²
  • Two LEDS to control the correct operating and the level of the alarms
  • ATEX
